WE-7 Premium Compact AC-DC Magnetic Yoke, 0 to 11 in (0-280mm) Capacity, 115V



Price: $ 730.00

WE-7 Compact AC/DC Magnetic Yoke
Western Instruments Premium Compact AC/DC Yoke (Variable DC)
Compact, Light Weight, Comfortable ergonomic grip, Grounded solid state switch, Sealed Switch cover, Rugged strain relief
Optional UL/CSA Approval
AC or DC Inspection Fields

The WE-7 Yoke is the worlds' lightest and most compact AC/DC Yoke. The WE-7 is equipped with a simple AC or DC Selector Switch. This MPI Yoke has a 6 position rotary switch for AC or 5 preset DC intensities, making the only AC/DC Yoke able to provide linear DC adjustments.

The WE-7 is based on the industry standard for Yoke construction, however has Western Instruments Ruggedness and Quality built in. The WE-7 utilizes a standard micro-switch for activation, but the switch cover is our exclusive Slip in design. Like all WE-Series Yokes, the Power Cord Strain Relief is the toughest in the business.

The ergonomically designed housing combined with its light weight, reduces operator fatigue and strain, for more effective inspections. The compact design also allows the WE-7 to fit into confined spaces better than any other AC/DC Yoke on the market. The urethane rubber housing provides superior durability in rugged environments, so the WE-7 is suitable for the high Arctic or the Sahara desert.

The WE-7 lifts over 10 pounds (4.5kg) in AC Mode and lifts over 50 Pounds (23kg) in DC Mode, exceeding ASTM or ASME Specifications. The WE-7 is equipped with infinitely variable DC output, so depending on the workpiece size, the operator doesnt have to risk saturating a small part. The AC/DC Selector Switch is equipped with a unique feedback loop, to eliminate failures due to switching between modes when the unit is activated.

line

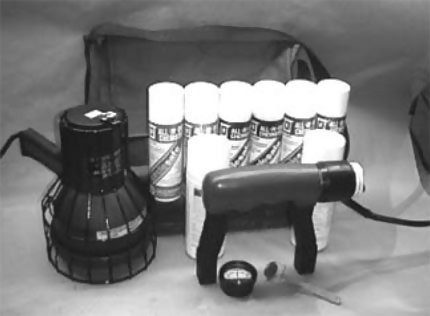

Photo Gallery
line


line
Features
line

  • Compact
  • Light Weight
  • Comfortable Ergonomic Grip
  • Grounded Solid State Switch
  • Sealed Switch Cover
  • Rugged Strain Relief
  • AC or DC Inspection Fields
  • Optional UL/CSA Approval


line
Applications
line

  • Automotive
  • Aerospace
  • Weld Inspection
  • Pressure Equipment
  • Piping
  • Fabrication
  • Manufacturing
  • Maintenance


line
Specifications
line

Voltage115V/60Hz or 230V/50Hz
ModelsWE-7 (115V)
WE-7K (230V)
Current4.0 Amps (WE-7), 2.0 Amps (WE-7K)
Frequency50-60Hz
Cord Length12(3.7m), 3-18 SOOW
LiftAC-10 pounds (4.6kg), DC-50 pounds (23kg)
Capacity0 to 11 (0-280mm)
FinishBlack Urethane Rubber
Weight7.5 pounds (3.5kg)


line
Downloads
line

WE-7 Compact AC/DC Magnetic Yoke - Data Sheet
WE-7 Compact AC/DC Magnetic Yoke - Instruction Manual

line
Buy Now
line


Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
WE-7 Premium Compact AC-DC Magnetic Yoke, 0 to 11 in (0-280mm) Capacity, 115V $730.00
Accessories Price
W-DM Deluxe Dry Visible (Powder) Method Kit $255.00
W-WM Wet Visible (Slurry) Method Kit $375.00
W-WD Wet/Dry Method Kit $345.00
W-SWF Self Contained Wet Method Fluorescent Kit $1,150.00
